Full Description:

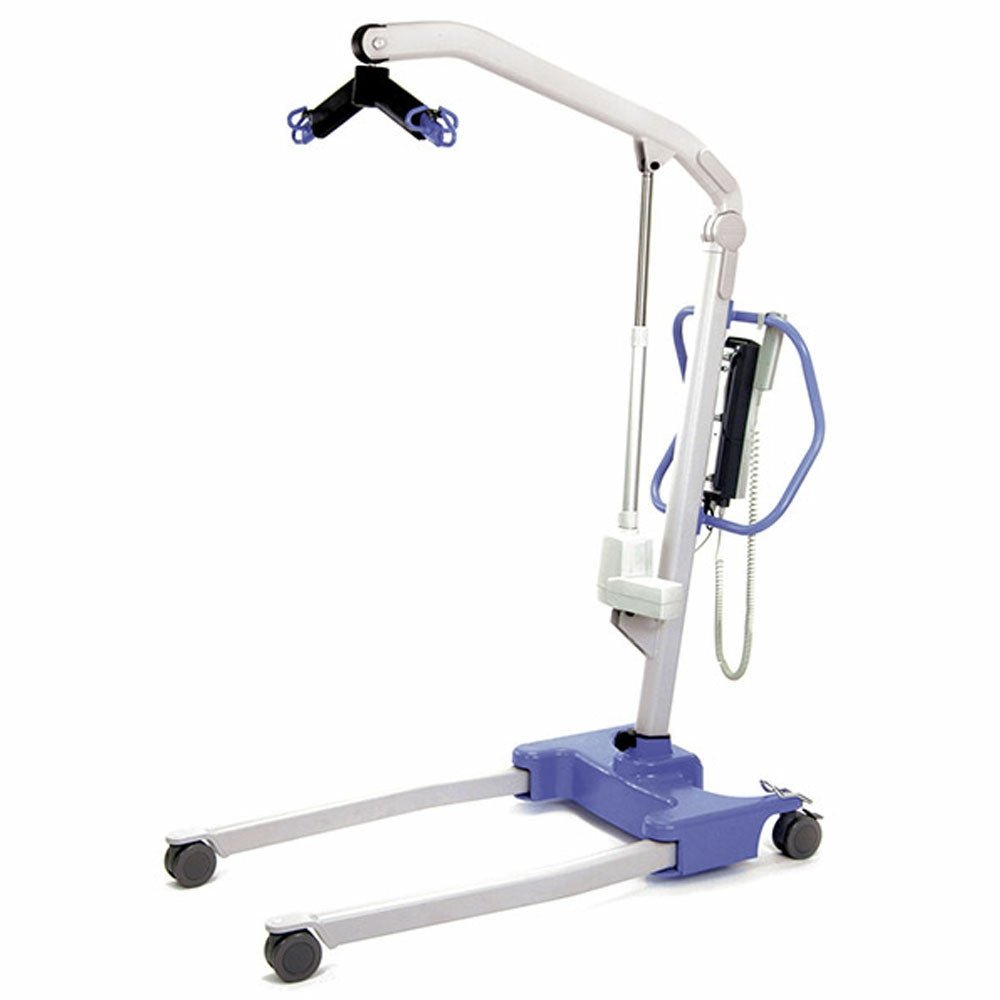

Oxford Advance Electric Mobile Hoist.
The Oxford Advance Electric Mobile Hoist comes with a free moving & handling training session! The Advance is an exceptionally versatile mobile hoist that has been designed with functionality and style in mind and is ideal for home use or in small care institutions where space is at a premium. Key to this mobile hoist's convenience is its ability to fold up in a compact manner without the need for tools making it particularly useful for putting in the boot of your car or tidily storing away in a cupboard when not in use. The Oxford Advance Electric Mobile Hoist has a unique swan neck leg design that provides greater access for the hoist even with wider obstacles, which is especially useful when encountering large chairs, cumbersome commodes or wheelchairs. For increased levels of manoeuvrability and control, the mobile hoist has well positioned castors, the rear of which are braked for additional stability and security, and an ergonomically designed, over sized push handle that allows the carer to move the hoist to the desired location with ease. A user friendly handset provides a smooth and gentle lifting action during transfers for the utmost levels of comfort and safety to the user whilst the excellent lifting range copes easily with a variety of different lifting requirements. The integrated Smart Monitor control system records the exact amount of work completed by the hoist and advises the user to schedule key maintenance keeping the mobile hoist in optimum condition. The Oxford Advance Electric Mobile Hoist comes with five year manufacturer's warranty as standard for complete reassurance and peace of mind.
Product Specification:
- One Oxford Advance Electric Mobile Hoist
- Exceptionally versatile electric mobile hoist
- Compact folding design for easy transportation
- Ideal for care environments with limited space
- Highly functional and well manufactured
- Vast lifting range makes it ideal for most lifting scenarios
- Easy to manoeuvre and position
- Swan leg design grants better access for transfers
- On board Smart Monitor keeps lift in prime condition
- 5 year manufacturer's warranty as standard
- Maximum overall length: 1300mm (51'')
- Minimum overall length: 1250mm (49'')
- Maximum overall height: 1860mm (73'')
- Minimum overall height: 1360mm (53.5'')
- Height (when folded): 450mm (17'')
- Depth (when folded): 1180mm (46.5'')
- Width: 550mm (21.5'')
- Spreader bar maximum height: 1690mm (66.5'')
- Spreader bar minimum height: 390mm (15.5'')
- Height at maximum reach: 1170mm (46'')
- Reach at maximum height: 650mm (25.5'')
- Reach at minimum height: 350mm (14'')
- Maximum reach: 835mm (33'')
- Turning radius: 1420mm (56'')
- External width (legs open): 1080mm (42.5'')
- Internal width (legs open): 1000mm (39.5'')
- External width (legs closed): 670mm (26.5'')
- Internal width (legs closed): 570mm (22.5'')
- Overall height of legs: 115mm (4.5'')
- Ground clearance: 30mm (1'')
- Front castors diameter: 75mm (3'')
- Rear castors diameter: 100mm (4'')
- Mobile Hoist weight: 31.7 kgs (69.7 lbs)
- Maximum user weight: 155 kgs (24.5 st)
Product Specification:
Brand | Joerns |
---|---|
Brand: | Joerns |
Product Code: | OXF-ADVANCED-S |
VAT Exempt: | Yes |
Warranty (years): | 1 |
