Full Description:

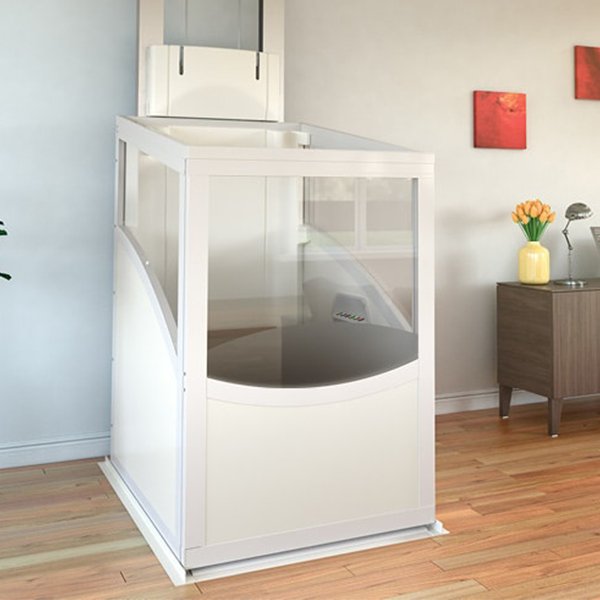

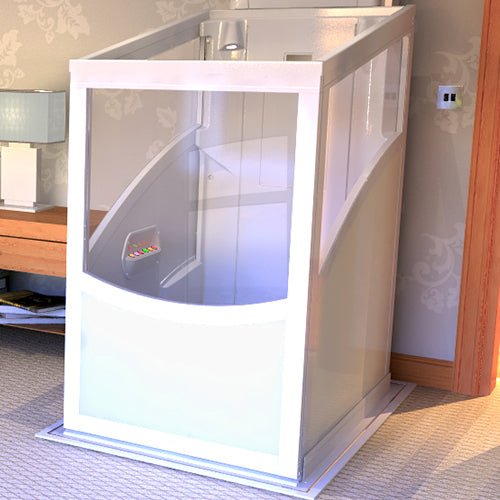

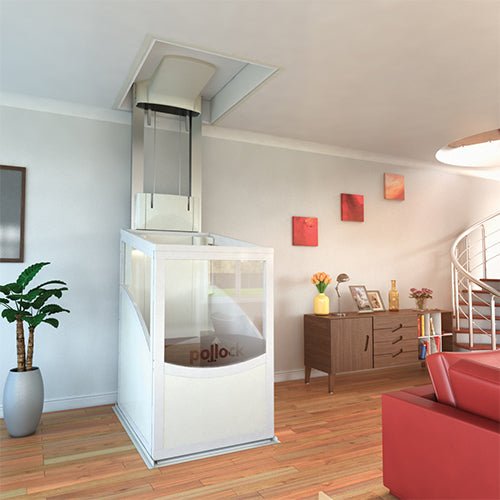

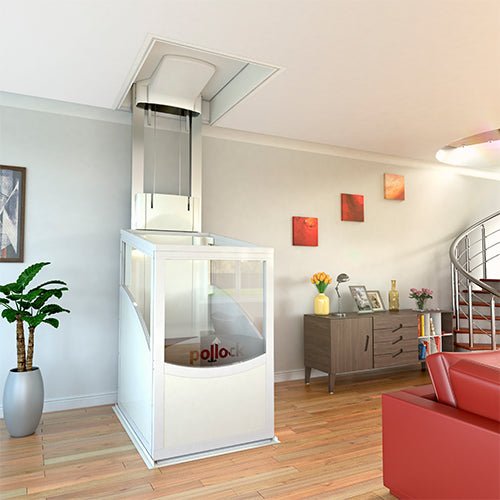

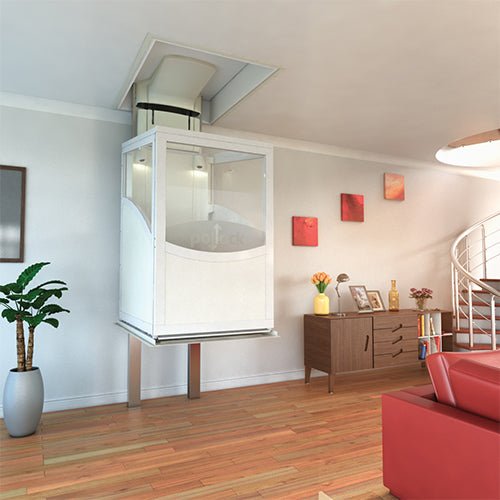

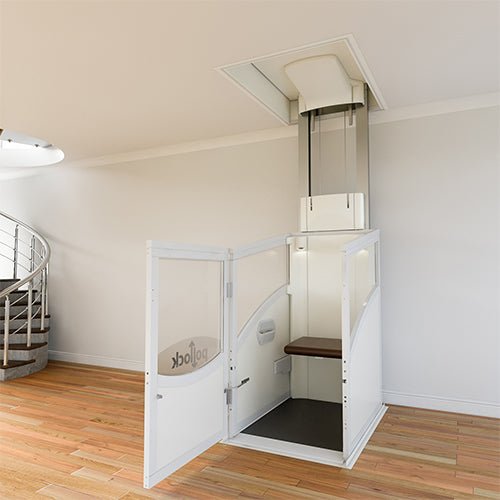

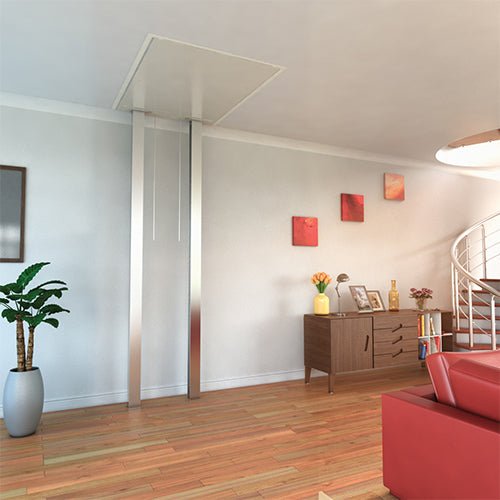

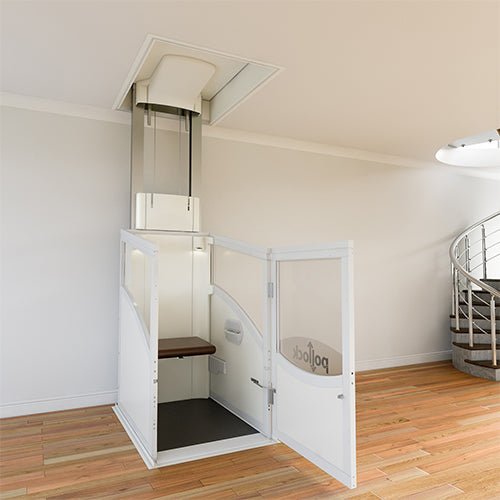

Designed using state-of-the-art lift technology, the Through-floor Lift maximises the space available to you; when you are downstairs, the lift can be moved quietly and discreetly back upstairs, leaving you the full use of your living space.
Key Features:
- Traction drive
- Soft start/stop facility as standard
- On-board diagnostic display
- Self-leveling Mechanism
- Compact footprint

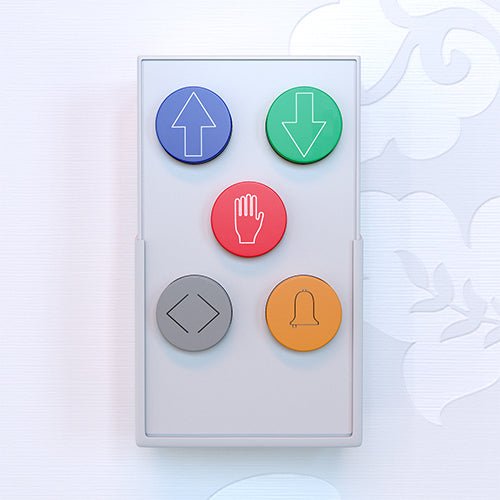

- Remote control call stations

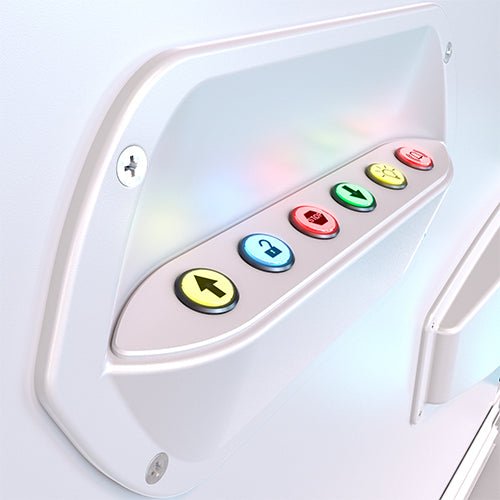

- In-car light, mirror and illuminated controls
- Battery backup
- CE Compliant
Optional Extras:
- Extended travel to 4.2m
- Power door

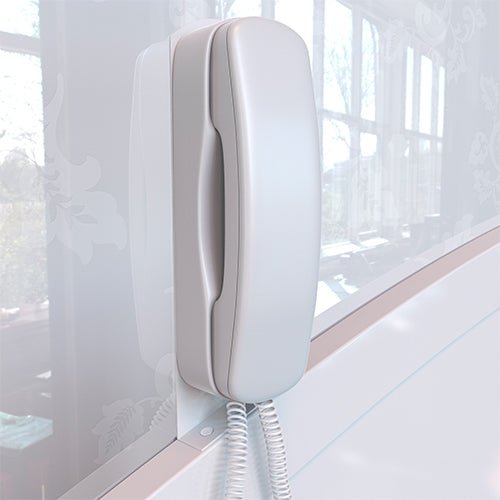

- In-Car telephone
- Range of grab handles
- Hydraulic drive system
- Customisation on request
Technical Specification
Internal/External Lift Dimensions:
- Wheelchair Configuration:
- Size:
- Internal: 750mm x 1100mm
- External (Door closed): 818mm x 1355mm
- External (Door open): 818mm x 2135mm
- Footprint: 896mm x 1425mm
- Wheelchair Configuration:
- Size:
- Internal: 750mm x 1175mm
- External (Door closed): 818mm x 1430mm
- External (Door open): 818mm x 2210mm
- Footprint: 896mm x 1500mm
- Wheelchair Configuration:
- Size:
- Internal: 750mm x 1250mm
- External (Door closed): 818mm x 1505mm
- External (Door open): 818mm x 2285mm
- Footprint: 896mm x 1575mm
- Wheelchair Configuration:
- Size:
- Internal: 800mm x 1100mm
- External (Door closed): 868mm x 1355mm
- External (Door open): 868mm x 2185mm
- Footprint: 946mm x 1425mm
- Wheelchair Configuration:
- Size:
- Internal: 800mm x 1175mm
- External (Door closed): 868mm x 1430mm
- External (Door open): 868mm x 2260mm
- Footprint: 946mm x 1500mm
- Wheelchair Configuration:
- Size:
- Internal: 800mm x 1250mm
- External (Door closed): 868mm x 1505mm
- External (Door open): 868mm x 2335mm
- Footprint: 946mm x 1575mm
- Wheelchair Configuration:
- Size:
- Internal: 850mm x 1100mm
- External (Door closed): 918mm x 1355mm
- External (Door open): 918mm x 2235mm
- Footprint: 996mm x 1425mm
- Wheelchair Configuration:
- Size:
- Internal: 850mm x 1175mm
- External (Door closed): 918mm x 1430mm
- External (Door open): 918mm x 2310mm
- Footprint: 996mm x 1500mm
- Wheelchair Configuration:
- Size:
- Internal: 850mm x 1250mm
- External (Door closed): 918mm x 1505mm
- External (Door open): 918mm x 2385mm
- Footprint: 996mm x 1575mm
- Wheelchair Configuration:
- Size:
- Internal: 800mm x 1400mm
- External (Door closed): 868mm x 1670mm
- External (Door open): 868mm x 2500mm
- Footprint: 946mm x 1740mm
- Seated Configuration:
- Size:
- Internal: 542mm x 760mm
- External (Door closed): 610mm x 1015mm
- External (Door open): 610mm x 1590mm
- Footprint: 688mm x 1085mm
Product Specification:
| Brand | Millercare |
|---|---|
| VAT Exempt: | Yes |
| Warranty (years): | 1 |
