The heavy duty version of the QUICKIE JIVE-F powerchair.
The JIVE family has now been expanded with the front wheel drive XL version. A heavy duty powered wheelchair with a maximum user weight of 240 kg, the JIVE-F XL also has a minimum seat to floor height of 43cm, making access into vehicles and under tables easy. The Jive F XL can easily be transferred into vehicles via regular ramps.

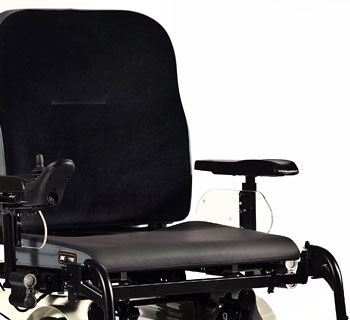

JAY Comfort seat and back
The JIVE F XL heavy duty powered wheelchair comes with a JAY Comfort seat and back as standard (and available in three widths: 56, 60 and 64cm). A headrest can also be added at no additional cost.

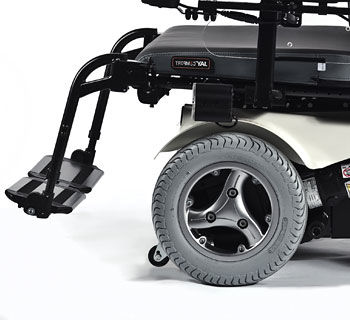

The JIVE-F XL powered wheelchair comes with heavy duty 4-pole motors for an improved maximum range. 14" Solid drive wheels and 9" castor wheels allow for easy manoeuvring and great outdoor performance.
120 A R-net controller
The 120 A R-net controller comes as standard for increased functionality.
Seat Width: 560mm - 600mm - 640mm (56cm-60cm-64cm)
Seat Height: Lowest 430mm (Lowest 43cm)
Seat Depth: -
Backrest Height: -
Armrest Height: -
Overall Width: max with 640mm seat : 880mm / (max with 64cm seat : 88cm)
Overall Length: min. 1160mm (min. 116cm)
Speed: 6 kph
Battery Size: 60 Ah / 70Ah
Max. Range: Aprox 30 km
Seat Tilt: 0º / 3º / 6º
Back Recline: -5º -+12º
Turning Diameter: min 700mm - (min. 70cm)
Max. Safe Slope: 6º / 11%
Max Kerb Climb: 50mm (5cm)
Min. Wheelchair Weight: 165 kg
Max. User Weight: 240 kg (37.8 stone)
Colours: White, red and blue
